modular extension of notebook computer(RAC-1400-TF)

Categories: Military industry
Num:
Features:
Service Hotline:+86-13670005178
RODUCT DETAILS

product detailsRODUCT DETAILS

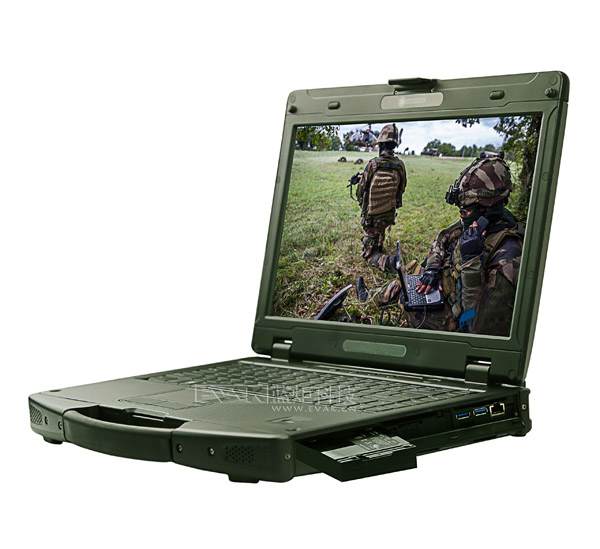

 RAC-1400-TF modular extension of notebook computer

Product specificationsRODUCT SPEC.

operating systemWindows XP, Windows Professional 7
Chipset &CPUIntel QM77 Intel Core I5-3340M/2.6Ghz, I7-3520M 2.9Ghz & reg
MemoryDDRIII 4G/8G/16G
Hard disk128G MSATA SSD
CD driveDVD recordable CD-ROM (CD-ROM graphics card two)
displaySize: 14 "HD TFT LED,
Resolution: 1366 * 768
AudioThe built-in microphone loudspeaker
cameraFront 1 million 300 thousand pixel camera
communication10/100/1000 Mbps Ethernet LAN port, optional second (10/100/1000 Mbps)
WLAN+Bluetooth combo module
The optional Gobi 3000 WWAN+GPS module or LTE module
data acquisitionFingerprint identification, PCMCIA II * 1 * 1, SD card slot
Strengthening characteristicsDustproof waterproof: positive / IP65
MIL-STD 810G: 516.6 Procedure IV drop
MIL-STD 810G 514.6 AnnexC vibration: Cat.4, Fig, 514.6C-1
work environmentWorking temperature: 0 to 50 DEG C storage temperature: -20 to 60 DEG C
Working humidity: 10% ~ 90% (no condensation) storage temperature: 5% ~ 95% (no condensation)
size(long) * 342 (W) * 245 (high) 47 (mm)
weight3.4KG
colourIn the green (black)

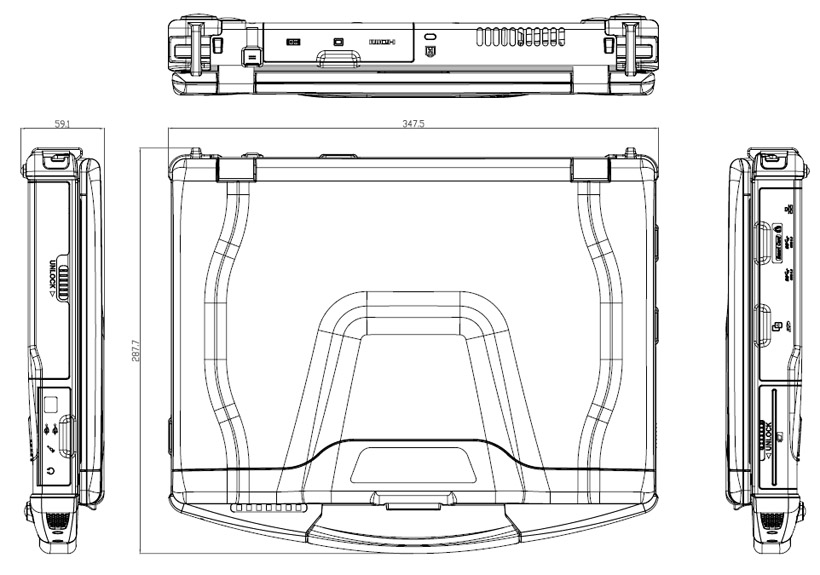

Product sizeRODUCT DIMENSIONAL DRAWING

 Product size

Ordering information:

Material number

LCD screen

CPU

Memory

storage

camera

lithium battery

WiFi

keyboard

Adapter

RAC-1400-TF

FourteenInch LCD

I5-3230M

4G

128G SSD

130W

7800mAH

Oneindividual

Waterproof keyboard

120W

Statement: the product specifications for reference this catalog, all product specifications are subject to change without notice, before ordering please contact BURNRAY Check the specifications of the products of science and technology.


RAC-1400-TF modular extension of notebook computer
